ERA Electronics

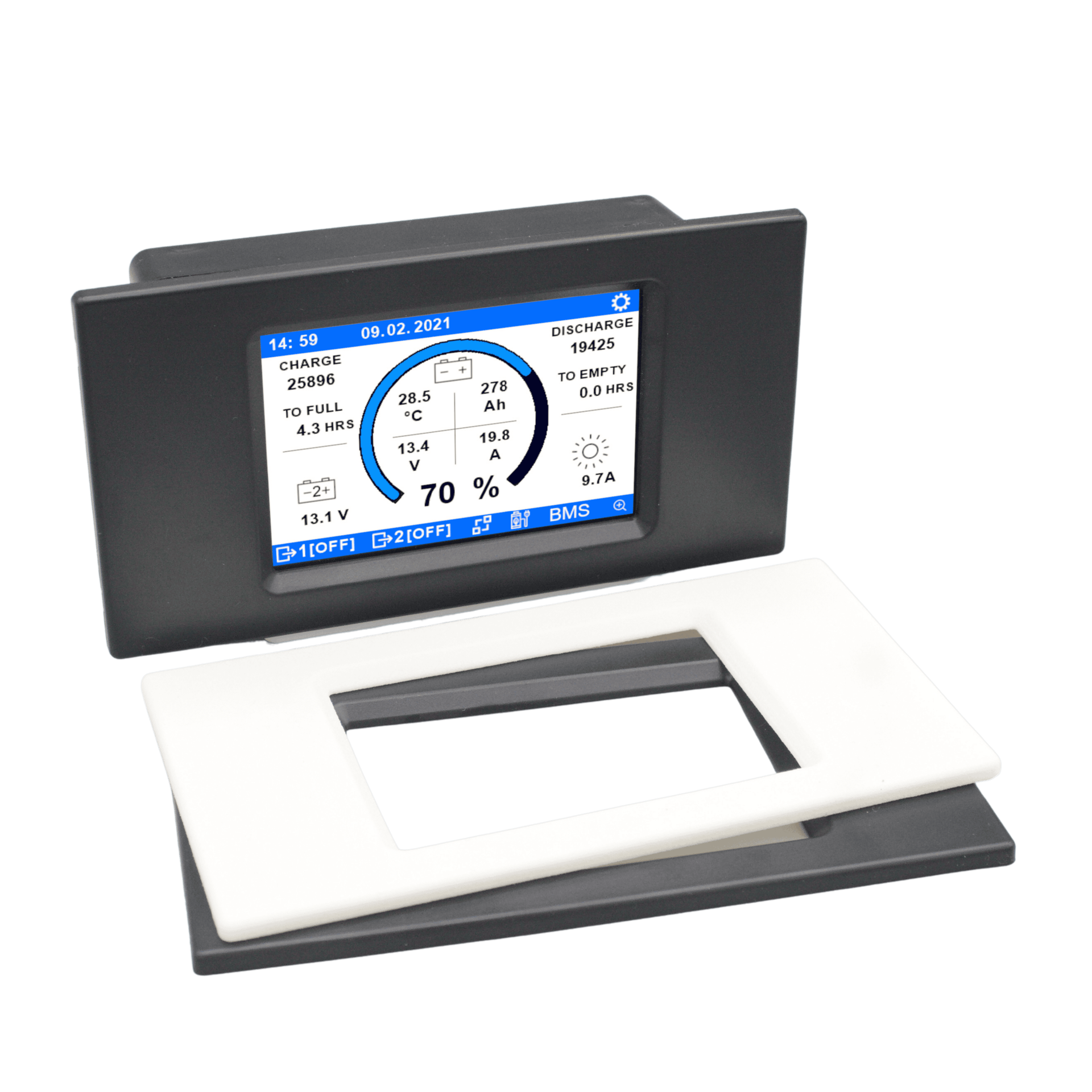

BM35

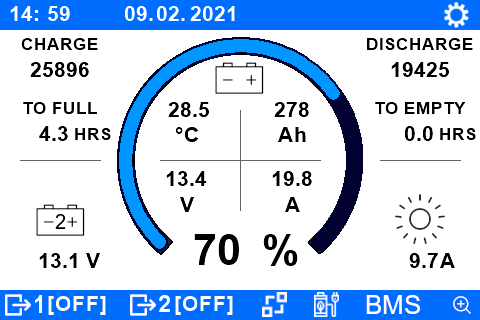

The BM35 allows you to monitor, through a 3.5" color display, the main parameters of service batteries installed on boats, campers, or the batteries of any off-grid system.

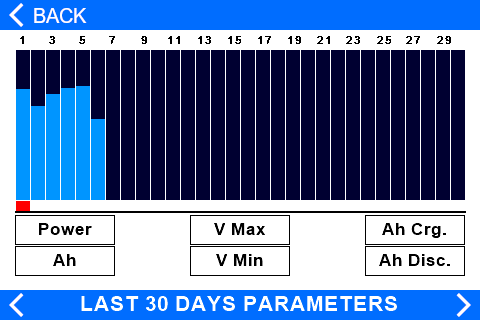

The display can display voltages, currents, calculate the Ah in charge and discharge, and the SOC of the batteries. It can also read the voltage of a second battery and store these values ​​for a period of 30 days.

The display is equipped with two relay outputs, programmable based on the timer and/or battery voltage/SOC.

Description

Value

Power supply voltage

7V – 60V

Current measurement range

50A – 1000A (according to the shunt size)

Current consumption

< 0.7W (backlight off)

Display type

3.5″ Resistive Touch

Wi-Fi Connection

Storage memory

30 days

Solar charge monitoring

Yes with second external shunt

Relay output

2 – 2A max. current

Dimensions

140x75x40mm

Weight

150g

Mounting system

Flush mounting

Description

Value

Power supply voltage

7V – 60V

Current measurement range

50A – 1000A (according to the shunt size)

Current consumption

< 0.7W (backlight off)

Display type

3.5″ Resistive Touch

Wi-Fi Connection

Storage memory

30 days

Solar charge monitoring

Yes with second external shunt

Relay output

2 – 2A max. current

Dimensions

140x75x40mm

Weight

150g

Mounting system

Flush mounting

Description and value

Power supply voltage

7V – 60V

Current measurement range

50A – 1000A (according to the shunt size)

Current consumption

< 0.7W (backlight off)

Display type

3.5″ Resistive Touch

Wi-Fi Connection

Storage memory

30 days

Solar charge monitoring

Yes with second external shunt

Relay output

2 – 2A max. current

Dimensions

140x75x40mm

Weight

150g

Mounting system

Flush mounting
